Optional Lab - Enable Makeswift for a Third-Party Component

In this first exercise in creating Makeswift-enabled components, you’ll take a pre-existing, open-source React component and simply “wrap” an implementation of it for use in the visual editor.

In this lab, you will:

• Enable a React comparison slider component for use within the Makeswift builder
• Make use of the Makeswift Image and Style controls

Prerequisites

• The starter codebase installed and connected with your BigCommerce store and Makeswift site, as done in the previous setup lab

Setup

Double check that the right site API key is present in your .env.local file.

Make sure your local dev server is running in your custom Makeswift project by using the following command in the root directory:

pnpm run dev

Sign into the Makeswift editor and make sure the appropriate site is chosen and that the Host URL matches the localhost domain your server is running on.

Lab Reference Copy

If it’s helpful to compare your own code as you go, you can clone or download the completed version of this lab as a reference.

Image Compare Slider Component Lab Snapshot

The React Compare Slider Component

You’ll be implementing a component called React Compare Slider, which is available for installation via npm.

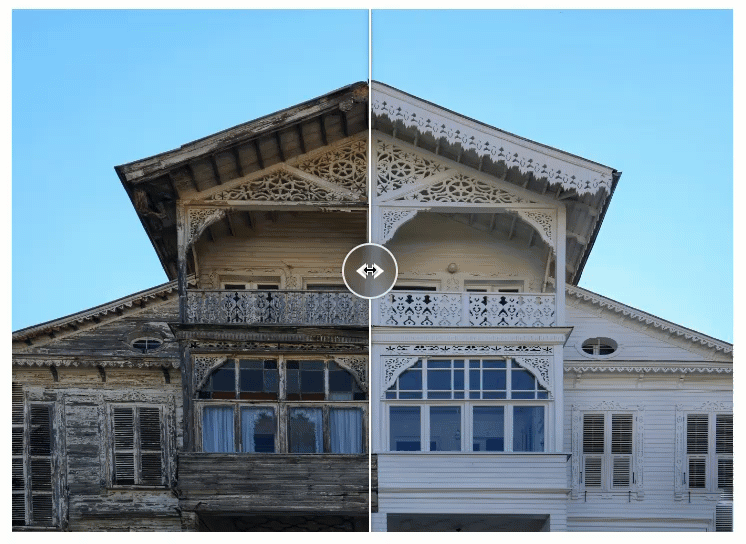

This component presents an interactive slider interface for comparing two pieces of content.

Our goal is to create a simple implementation of this comparison slider with two images, enabling this as a Makeswift component that can supply those images with editor controls.

Step 1: Register the Component

The project boilerplate already includes the ImageCompareSlider component with placeholder text. Your first step is simply to register the component so it can be used in the Makeswift builder.

1. Open the file components/custom/image-compare-slider/register.tsx and add the registerComponent call immediately after the imports.

runtime.registerComponent(
  ImageCompareSlider,
  {
    type: 'img-compare-slider',
    label: 'Image Compare Slider',
    props: {
    },
  }
);

You have no prop controls defined at this time, but this registration will make it available to the Makeswift runtime. The only other step that’s necessary is to make sure this registration is imported when a page renders.

2. Open the file lib/makeswift/components.ts and add the following import.

import '~/custom/components/image-compare-slider/register';

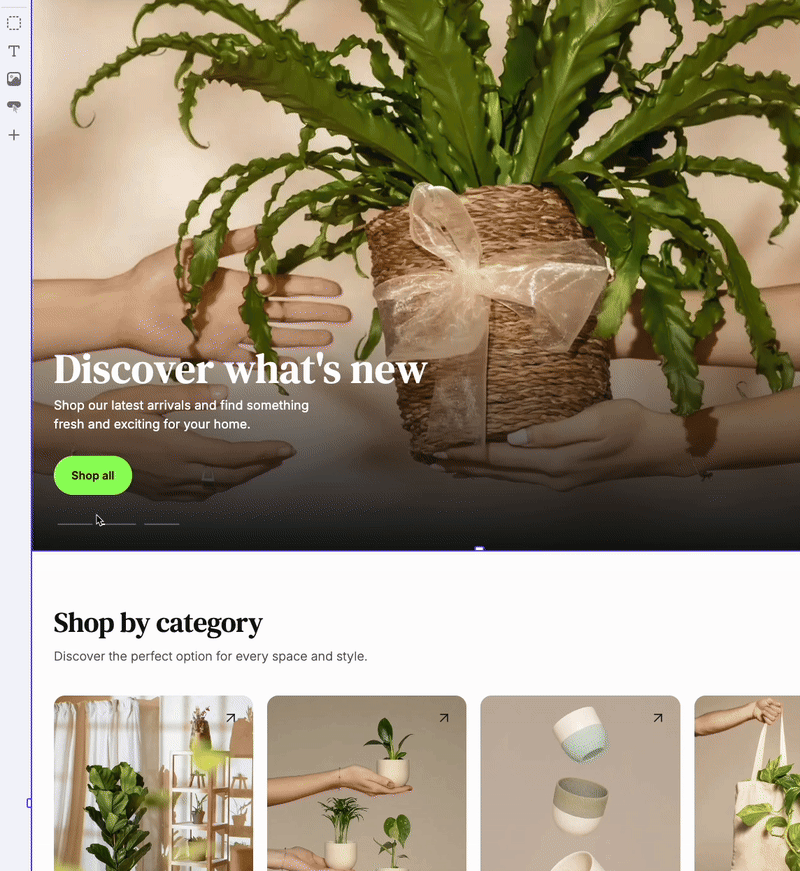

3. Browse to the Makeswift editor with the appropriate site selected and verify that your “Image Compare Slider” component is available to drag into the editor viewport.

Example Code

Step 2: Add react-compare-slider

Now you’ll bring the real ReactCompareSlider component into your own, albeit still with placeholder content.

1. Open the file components/custom/image-compare-slider/image-compare-slider.tsx and add an import for the proper components.

import { ReactCompareSlider, ReactCompareSliderImage } from 'react-compare-slider';

2. Modify the placeholder content within the ImageCompareSlider JSX as follows:

export const ImageCompareSlider = forwardRef((
  // ...
) => {
  return (
    <div
      ...
    >
      <ReactCompareSlider
        itemOne={
          <ReactCompareSliderImage
            src="https://placehold.co/600x400"
          />
        }
        itemTwo={
          <ReactCompareSliderImage
            src="https://placehold.co/600x400"
          />
        }
      />
    </div>
  );
});

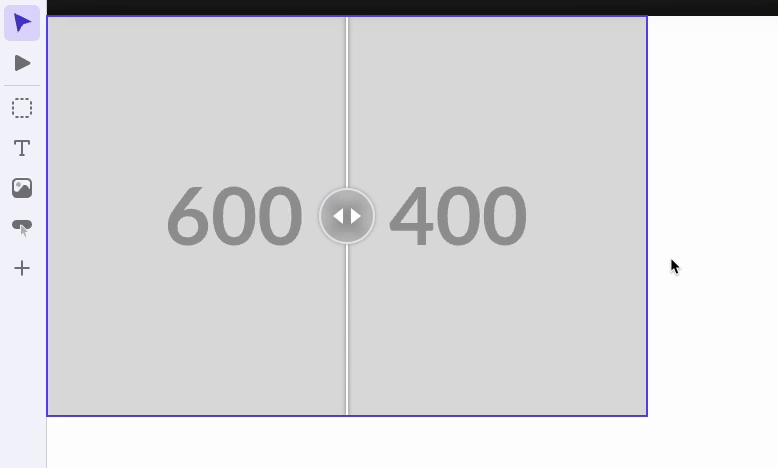

3. Browse to the Makeswift editor again and verify that the component now appears as a working slider with two (identical) placeholder images.

Example Code

Step 3: Add Image Controls

For a fully functional Makeswift component, you need the ability to control the images presented using the editor.

1. Open the file components/custom/image-compare-slider/register.tsx and add two props with Image controls.

runtime.registerComponent(
  ImageCompareSlider,
  {
    // ...
    props: {
      image1: Image({
        label: "Image 1",
        format: Image.Format.URL,
      }),
      image2: Image({
        label: "Image 2",
        format: Image.Format.URL,
      }),
    },
  }
);

Note the use of Image.Format.URL for the format. You won’t need to know the dimensions of the images, so this simple format will give you just the image URL as a string in the prop.

2. Open components/custom/image-compare-slider/image-compare-slider.tsx and modify the component code as follows, defining the new props and utilizing them for the image src attributes.

// ...
interface Props {
  image1?: string;
  image2?: string;
}
export const ImageCompareSlider = forwardRef((
  {
    image1 = "https://placehold.co/600x400",
    image2 = "https://placehold.co/600x400",
  }: Props,
  ref: Ref<HTMLDivElement>
) => {
  return (
    <div
      ...
    >
      <ReactCompareSlider
        itemOne={
          <ReactCompareSliderImage
            src={image1}
          />
        }
        itemTwo={
          <ReactCompareSliderImage
            src={image2}
          />
        }
      />
    </div>
  );
});
// ...

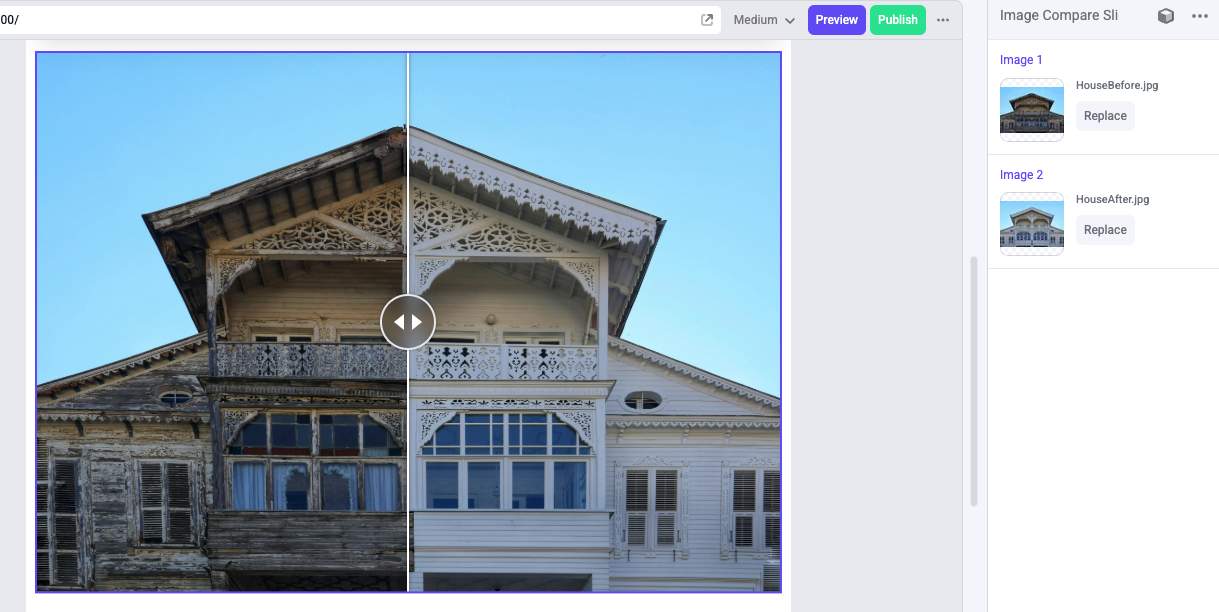

3. Verify in the editor interface that your new controls appear in the properties panel and successfully affect the component.

Example Code

Step 4: Add Style Control

To make your new component maximally flexible in the editor, it would be best for its sizing, spacing, and border properties to be editable, which you can do with a Style control.

1. Open the file components/custom/image-compare-slider/register.tsx and add the className prop.

runtime.registerComponent(
  ImageCompareSlider,
  {
    // ...
    props: {
      className: Style({
        properties: [
          Style.Width,
          Style.Margin,
          Style.Padding,
          Style.Border,
          Style.BorderRadius
        ],
      }),
      image1: Image({
        // ...
      }),
      // ...
    },
  }
);

The component doesn’t involve any text, so you’re specifying a list of supported properties excluding the text formatting controls.

2. Open components/custom/image-compare-slider/image-compare-slider.tsx and add the prop. You simply need to pass it to the className of the container element to apply all properties.

// ...
interface Props {
  className?: string;
  // ...
}
export const ImageCompareSlider = forwardRef((
  {
    className,
    // ...
  }: Props,
  ref: Ref<HTMLDivElement>
) => {
  return (
    <div
      className={clsx(
        "overflow-hidden",
        className
      )}
      ref={ref}
    >
      {/* ... */}
    </div>
  );
});
// ...

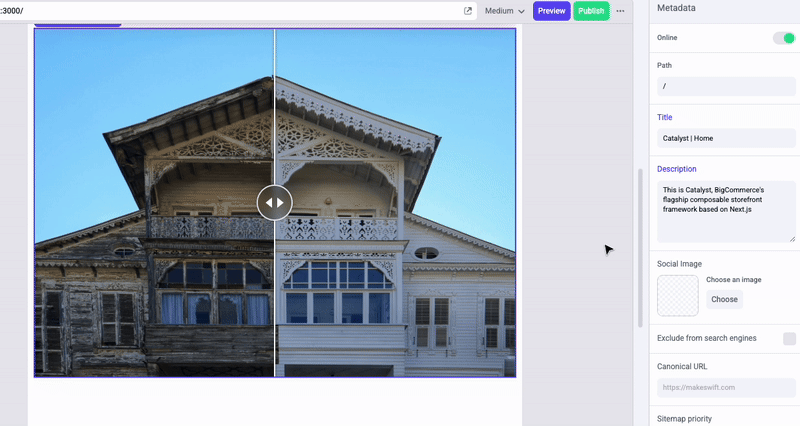

3. Verify the functionality of your new style controls in the editor.

Example Code

Full Lab Code

Full Lab Code

Taking It Further

The React Compare Slider component includes a number of props to vary the interactive experience, such as props for changing the interaction method to hover instead of drag or for applying a top-to-bottom slider instead of side-to-side.

See the full list of props on the npm info page.

Try selecting a few of these props to support in your own component, then implement appropriate Makeswift controls for them and pass the values through in your own component code.
