CoursesCheckout and Orders APIModule 2: Management API

Checkout API

Lesson 5 of 26 · 30 min

What is Checkout API?

Checkout API allows for a checkout to be created from an existing cart using BigCommerce checkout logic. The existing BigCommerce front-end cart/checkout can be bypassed.

Why is it important?

The Checkout API makes it possible to purchase products from a BigCommerce store programmatically. You also have the option to use the GraphQL Storefront API to build an external checkout in your CMS or app.

When to Use the Checkout API:

  • Headless Commerce - manage various operations in a custom checkout on a headless storefront.
  • Take a checkout in progress on the storefront and validate its address details externally, then post back a corrected address.
  • Fill out a checkout object so that the user only has to enter their credit card details.

GET a Checkout

You can retrieve a checkout by sending a GET request to the /checkouts endpoint and including the checkout_id.

GET https://api.bigcommerce.com/stores/{{store_hash}}/v3/checkouts/{checkout_id}

Cart_id and checkout_id are the same Id.

Add Checkout Billing Address

You can add a billing address to an existing checkout by sending a POST request to /checkouts/{checkout_id}/billing-address

POST https://api.bigcommerce.com/stores/{{store_hash}}/v3/checkouts/{checkout_id}/billing-address

Required Fields:

  • email
  • country_code

Body Example

{
  "first_name": "Jane",
  "last_name": "Doe",
  "email": "jane@email.com",
  "address1": "123 Main Street",
  "address2": "",
  "city": "Austin",
  "state_or_province": "Texas",
  "state_or_province_code": "TX",
  "country_code": "US",
  "postal_code": "78751",
  "phone": "1234567890"
}

Example Response

Update Checkout Billing Address

Update an existing billing address with a PUT request to /checkouts/{checkout_id}/billing-address/{address_id}

PUT https://api.bigcommerce.com/stores/{{store_hash}}/v3/checkouts/{checkout_id}/billing-address/5d51b12389ea8

Body Example

{
  "email": "jenny@email.com",
  "phone": "5128675309"
}

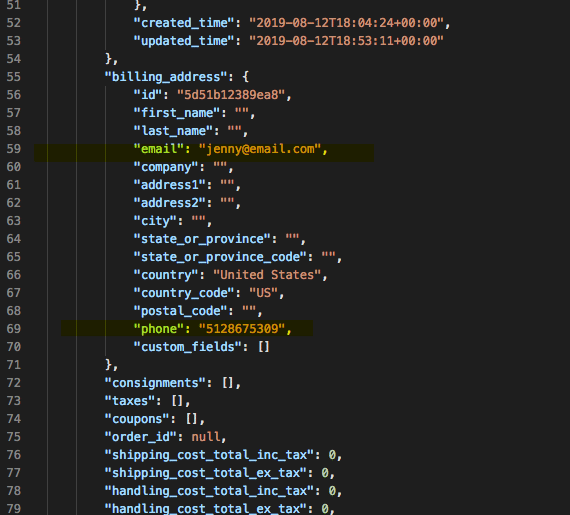

Example Response

Add Consignment to Checkout

A consignment is a list of physical products that will travel together to the purchaser, and it specifies how those items can and will ship. It is an object that includes at least one product line item and one shipping address.

Add a new Consignment to Checkout by sending a POST request to /checkouts/{checkout_id}/consignments

POST https://api.bigcommerce.com/stores/{{store_hash}}/v3/checkouts/{checkout_id}/consignments

Required Query:

  • consignments.available_shipping_options

Required Fields:

  • shipping_address
  • line_items

Update Checkout Consignment

PUT https://api.bigcommerce.com/stores/{{store_hash}}/v3/checkouts/{checkout_id}/consignments/{consignment_id}

Updates an existing consignment. Shipping address, line item IDs or the shipping option ID can be updated using this endpoint.

Required Fields:

  • shipping_option_id

There are two steps to add a new shipping address and shipping options with line items.

  1. Add a new Consignment to Checkout
    • Send a POST to Consignments with each shipping address and line items IDs. Each address can have its own line item IDs.
    • As part of the request URL make sure to add include=consignments.available_shipping_options to return the available shipping options based on line items and shipping locations. This will return available_shipping_options in the response.
  2. Update the Consignment with Shipping Options
    • Update each Consignment shipping_option_id (shipping address and line items) with the available_shipping_option id from Step One.

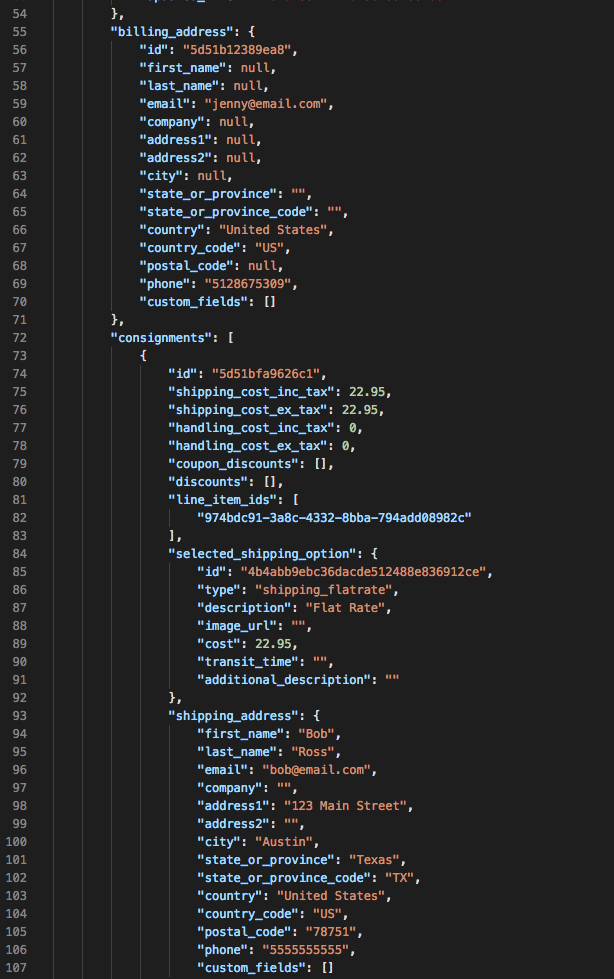

Example Response

Delete Checkout Consignment

DELETE https://api.bigcommerce.com/stores/{{store_hash}}/v3/checkouts/{checkout_id}/consignments/{consignment_id}

Removes an existing consignment from checkout.

Add a Coupon to Checkout

Add a Coupon Code to a checkout with a POST request to /checkouts/{checkout_id}/coupons

Required Fields

  • coupon_code

Delete a Checkout Coupon

DELETE https://api.bigcommerce.com/stores/{{store_hash}}/v3/checkouts/{checkout_id}/coupons/{coupon_code}

Deletes a Coupon Code from Checkout.

Add Discount to Checkout

To add a discount to an existing checkout, send a POST request to /checkouts/{checkout_id}/coupons

In the request body, you need to include the following information:

  • couponCode: The code of the discount that you want to add.
  • couponType: The type of discount that you want to add. Valid values are percentage_discount and amount_discount.
  • discountedAmount: The amount of the discount. For a percentage discount, this is the percentage of the checkout total that will be discounted. For an amount discount, this is the amount of money that will be discounted.

For example, the following request would add a 10% discount to a checkout with the ID 12345:

POST https://api.bigcommerce.com/stores/mystore/v3/checkouts/12345/coupons
Content-Type: application/json
{
  "couponCode": "10OFF",
  "couponType": "percentage_discount",
  "discounted_Amount": 10
}

Here are some additional things to keep in mind about adding discounts to checkouts:

  • You can only add one discount to a checkout at a time.
  • If you add a discount that conflicts with an existing discount, the most recently added discount will take precedence.
  • Discounts are applied to the checkout total before taxes and shipping costs.

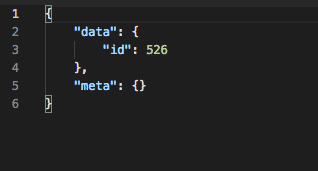

Create an Order

Create an order by sending a POST request to /checkouts/{checkout_id}/orders

POST https://api.bigcommerce.com/stores/{{store_hash}}/v3/checkouts/{checkout_id}/orders
  • Orders created will be set to incomplete order status
  • You can create as many orders from the same order (cart) as you want
  • Order duplication creates the same order with a new order number and an incomplete status
  • Once the order is paid, then the cart is deleted. Cart deletion occurs if you are using BigCommerce to accept payments on orders
