Lab - Custom GraphQL and Basic Components

With your Catalyst environment now in place and FAQ metafields prepared on one of your store’s products, you’re ready to start building. In this section, you’ll add a rudimentary representation of a product’s FAQs on the product detail page.

In this lab, you will:

• Build a custom GraphQL query using Catalyst patterns and observe the resulting code generation
• Utilize basic components to present FAQs on the product detail page

Setup

Make sure your the local dev server is running in your custom Catalyst project by using the following command in the root directory:

pnpm run dev

All of the following steps for this exercise will involve working with the code files directly in the Catalyst project.

Exercise Reference Copy

If it’s helpful to compare your own code as you go, you can clone or download the completed version of this lab as a reference.

Product FAQs Lab Snapshot

Step 1: Create the ProductFaqs Component

1. Open the file messages/en.json, which contains locale-specific strings. Locate the top-level “Product” object and add a “FAQ” section to it as shown below.

...
  "Product": {
    ...
    "FAQ": {
      "heading": "Frequently Asked Questions"
    }
  },
...

2. Open the file components/custom/product-faqs/index.tsx. This defines the component that controls the main presentation of the Product FAQs section.
3. Modify the props interface and destructuring expression to include productId and heading props.

interface ProductFaqsProps {
  productId: number;
  heading: string;
  ...
}
export function ProductFaqs({
  productId,
  heading,
  ...
}: ProductFaqsProps) {
  ...
}

4. Modify the component to simply output a heading and simple placeholder text for now.

export function ProductFaqs({
  ...
}: ProductFaqsProps) {
  ...
  return (
    <section className="overflow-hidden @container">
    <div className="mx-auto w-full max-w-screen-2xl px-4 py-10 @xl:px-6 @xl:py-14 @4xl:px-8 @4xl:py-20">
      <h2 className="font-heading text-2xl leading-none @xl:text-3xl @4xl:text-4xl py-4">
        {heading}
      </h2>
      <p>FAQs for product ID {productId}</p>
    </div>
    </section>
  );
}

5. Open the file app/[locale]/(default)/product/[slug]/page.tsx. This is the route file for the product detail page, where the final FAQs content will be included.
6. Add the following import with other imports at the top of the file.

import { ProductFaqs } from '~/components/custom/product-faqs';

7. Find the return of the JSX from the Product component. Immediately before the return, add the following to retrieve the translated heading string.

export default async function Product({ params, searchParams }: Props) {
  ...
  const tFaqs = await getTranslations('Product.FAQ');
  const faqsHeading = tFaqs('heading');
  return (
    ...
  );
}

8. In the JSX returned from the Product component, find the section with the output of FeaturedProductsCarousel and add the FAQ code as shown below, between FeaturedProductsCarousel and the preceding components.

export default async function Product({ params, searchParams }: Props) {
  ...
  return (
    <>
      ...
      <ProductAnalyticsProvider ... />
      <ProductFaqs
        heading={faqsHeading}
        productId={productId}
      />
      <FeaturedProductsCarousel
        ...
      />
      ...
    </>
  );
};

With your component now being included in the page, revisit your product page. You should successfully see the “Frequently Asked Questions” section, albeit with simple placeholder text.

Example Code

Step 2: Create the FAQ Metafields Query

1. Open the file components/custom/product-faqs/_data/component-data.ts. Since the FAQs query will be used both in the server component and eventually a server action, it will be defined here — located closely to the component code but in a centralized place.

Note the import of the zod library. This schema validation library will help with verifying the type/shape of data in cases not specifically related to GraphQL schema, which will be required in this situation when the JSON string of each metafield is parsed.

Also note the formatFaqsCollection function. This will eventually be used to format a custom-tailored response object containing all the information needed by the components, including an end cursor if there are multiple pages of results.

2. Modify the code as shown below to fill in the details of the site.product query tailored specifically to fetch metafield information. This specifically queries the “FAQ” namespace you used for your previously created metafields.

...
export const FaqMetafieldsFragment = graphql(`
  fragment FaqMetafieldsFragment on Product {
    metafields(namespace: $namespace, first: $limit, after: $after) {
      pageInfo {
        hasNextPage
        endCursor
      }
      edges {
        node {
          key
          value
        }
      }
    }
  }
`);
export const MetafieldsQuery = graphql(
  `
    query getProductFaqMetafields(
      $productId: Int!,
      $namespace: String!,
      $limit: Int,
      $after: String
    ) {
      site {
        product(entityId: $productId) {
          ...FaqMetafieldsFragment
        }
      }
    }
  `,
  [FaqMetafieldsFragment]
);
...

The MetafieldQuery will be used for fetching the FAQ data, and separating the specific fields into a fragment will assist with TypeScript definitions as we pass the data around.

3. Add the following code immediately before the formatFaqs function to define the shape of each FAQ once its JSON is parsed.

...
const FaqMetafield = z.object({
  key: z.string(),
  question: z.string(),
  answer: z.string(),
});
export const formatFaqsCollection = (
  ...

4. Modify the formatFaqs function as follows. This will standardize the process of transforming the metafield data retrieved with GraphQL into a useful format.

export const formatFaqs = (
  ...
) => {
  const fields = removeEdgesAndNodes(product.metafields);
  return fields
    .map((field) => {
      try {
        return FaqMetafield.parse({
          ...JSON.parse(field.value),
          key: field.key,
        });
      } catch (err) {
        console.log(err);
        return { key: '', question: '', answer: '' };
      }
    })
    .filter((field) => field.key.trim().length > 0);
}

The metafields data expected in the response is a cursor list, requiring the edges and node fields in the overall graph structure. The above code uses the common utility function removeEdgesAndNodes to flatten this data, removing those intermediary layers and resulting in a more typical array of the metafields.

This final logic before data is returned decodes the JSON value of each metafield, adds in the key, then uses the type object you previously created to validate the result. Every object should now include a key, question and answer, and any metafield that doesn’t will not be included in the returned result.

5. Modify the getProductFaqMetafields function as follows to perform the query.

const getProductFaqMetafields = cache(
  async (variables: Variables) => {
    const { locale, ...queryVariables } = variables;
    const response = await client.fetch({
      document: MetafieldsQuery,
      variables: {
        ...queryVariables,
        namespace: `FAQ|${locale}`,
      },
    });
    const product = response.data.site.product;
    if (!product?.metafields) {
      return { endCursor: null, faqs: [] };
    }
    return formatFaqsCollection(product);
  }
);

Note that the getProductFaqMetafields function expects a locale argument, while the GraphQL query expects a namespace. The code above extracts the passed locale and concatenates it into a namespace value in the form “FAQ|locale”.

Next, you’ll update the ProductFaqs component to accept the appropriate data.

6. Open the file components/custom/product-faqs/index.tsx. Add the FaqsCollection interface and modify the props interface to receive a limit and faqsCollection.

interface FaqsCollection {
  endCursor: string | null;
  faqs: Faq[];
}
interface ProductFaqsProps {
  productId: number;
  heading: string;
  limit: number;
  faqsCollection: FaqsCollection;
  ...
}
export function ProductFaqs({
  productId,
  heading,
  limit,
  faqsCollection,
}: ProductFaqsProps) {
  ...
}

7. Add a simple console.log within the component to log the FAQs data to the terminal output.

export function ProductFaqs({
  ...
}: ProductFaqsProps) {
  // TODO: Remove this after FAQ information is being rendered
  console.log(faqsCollection);
  ...
}

8. Open the file app/[locale]/(default)/product/[slug]/page.tsx and add an import for the data fetch method.

import { getProductFaqMetafields } from '~/components/custom/product-faqs/_data/component-data';

9. Before the JSX return, where you previously added getTranslations, set a record limit and add the fetch of the FAQs data.

export default async function Product({ params, searchParams }: Props) {
  ...
  const tFaqs = await getTranslations('Product.FAQ');
  const faqsHeading = tFaqs('heading');
  const faqsLimit = 2;
  const faqsCollection = await getProductFaqMetafields({ productId, locale, limit: faqsLimit });
  return (
    ...
  )
}

10. Add the limit and faqsCollection props to the rendering of ProductFaqs.

export default async function Product({ params, searchParams }: Props) {
  ...
  return (
    ...
    <ProductFaqs
      faqsCollection={faqsCollection}
      heading={faqsHeading}
      limit={faqsLimit}
      productId={productId}
    />
    ...
  )
}

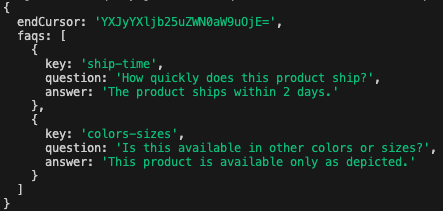

Browse to a product for which you’ve assigned FAQ metafields. The placeholder content will not have changed, but in the output of the terminal where you’re running the dev server, you should be able to observe a log not only of the getProductFaqMetafields query call, but also the data returned from it. (Note that the limit passed into the query function means you’ll only see two results.)

Example Code

Step 3: Create the Listing Component

1. Open the file components/custom/product-faqs/faqs-list.tsx. This defines the component that will render just the FAQs list, which will be reused in a couple of places.

2. Modify the component to accept a list of FAQs and render a simple list.

...
interface FaqsListProps {
  faqs: Faq[];
}
export function FaqsList({
  faqs,
}: FaqsListProps) {
  return faqs.length <= 0 ? '' : (
    <div className="mx-auto md:w-2/3">
      {faqs.map(faq => (
        <div className="my-4" key={faq.key}>
          <div>
            <label className="font-bold">Question:</label>
            <span> {faq.question}</span>
          </div>
          <div>
            <label className="font-bold">Answer:</label>
            <span> {faq.answer}</span>
          </div>
        </div>
      ))}
    </div>
  );
}

3. Open components/custom/product-faqs/index.tsx and remove the logging statement you previously put in place.

// REMOVE
console.log(faqsCollection);

4. Replace the previous placeholder text with the ProductFaqsComponent client component.

export function ProductFaqs({
  ...
}: ProductFaqsProps) {
  return (
    <section ...>
    <div ...>
      <h2 ...>
        {heading}
      </h2>
      <FaqsList faqs={faqsCollection.faqs} />
    </div>
    </section>
  );
}

In our final state, the page route does the job of fetching the FAQs data and hands it off to ProductFaqs. This component sets up the main UX (which we’ll add to later) and in turn passes the FAQs to FaqsList to render the list.

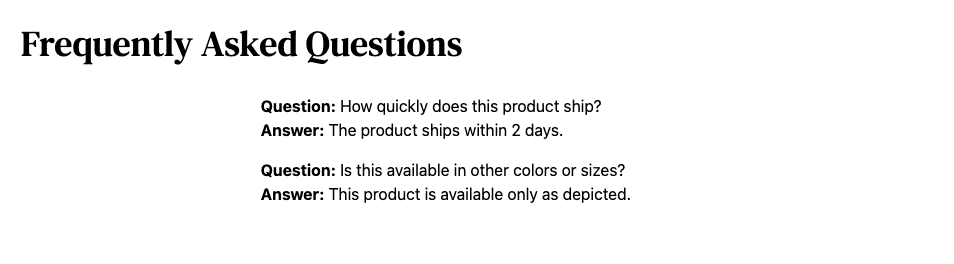

Revisit your product page. You should successfully see the first two FAQs displayed. This is a rudimentary presentation for now, but you’ll soon spruce it up.

Example Code

Full Exercise Code

Full Exercise Code
