Lab - Simulate a CRM Integration

Introduction

This exercise will simulate an external CRM integration by fetching support case data from an API and displaying it in the Buyer Portal.

In this lab, you will:

• Perform a mock token exchange with the CRM
• Make a mock data fetch for support case data
• Display the support case status on the Overview page

Setup

This exercise continues where you left off previously. Make sure the dev server is started in your Buyer Portal project:

yarn dev

If you need a fresh start, you can follow the instructions below to set up a new project complete with previous exercise code.

1. Copy the project with the appropriate tag.

degit https://github.com/bigcommerce-edu/lab-b2b-buyer-portal.git#e-crm-pre <directory-name>

2. Install dependencies.

cd <directory-name>
yarn install

3. Run the dev server.

yarn dev

Exercise Reference Copy

If it’s helpful to compare your own code as you go, you can clone or download the completed version of this labs as a reference.

CRM Lab Snapshot

The Mock CRM Service

The lab boilerplate code already includes a minimal implementation of a mock CRM service. See the implementation here.

This implementation includes:

• A mock client simulating fetches to these REST endpoints:
  • /storefrontToken
  • /company/orderCases
• Service methods fetchStorefrontToken and fetchOrderSupportCases that wrap the mock client calls.

The client simulates a workflow for integrating with a hypothetical “backend for frontend” (BFF) service - a thin middleware layer proxying data from the CRM to the Buyer Portal.

Important notes about the mock implementation:

• The mock client simulates a random delay of 1-5 seconds for each request.
• fetchStorefrontToken simulates a token exchange. In a real-world implementation, the BFF service would verify that the BigCommerce B2B storefront token is valid and matches a given company in the CRM, then return a signed JWT with a unique token and CRM ID for the company. In this mock implementation, the request automatically succeeds and returns a randomly generated token.
• fetchOrderSupportCases simulates a data fetch for support case data from the CRM, for whichever B2B orders are passed in. In a real-world implementation, the BFF service would store minimal support case data pushed to it from the CRM, as well as take care of validating the CRM JWT from the Buyer Portal. In this mock implementation, the token validation is done in the client itself, and a static array of case data is returned regardless of what B2B order IDs are passed in.

The following diagram shows the hypothetical request flow between the client (Buyer Portal), BFF service, BigCommerce B2B, and CRM:

Managing the CRM Token

In a previous lab exercise, we added a new Redux slice allowing us to manage the CRM token in the Buyer Portal global state.

We added these entry points:

• When the Buyer Portal is initialized in App.tsx, a value is set in the global state.
• In the RecentOrders component, the CRM token is retrieved from the global state.

We’ll be updating the initialization logic to perform a token exchange with the mock CRM service.

Step 1: Perform Token Exchange

1. Open shared/service/crm-bff/initCrm.ts and implement the logic to perform the token exchange with the mock client.

const initCrm = async ({
  b2bToken,
  companyId,
}: {
  b2bToken: string,
  companyId: string,
}) => {
  if (!b2bToken || !companyId) return;
  const token = await fetchStorefrontToken({
    b2bToken,
    b2bCompanyId: companyId,
    storeHash,
  });
  return token;
};

2. Open App.tsx and update imports to include initCrm and add the selector from the Redux store.

import { selectCrmToken, setCrmToken } from '../../../../../../store';
import { initCrm } from '../../../../../../shared/service/crm-bff/initCrm';

3. Near the top of the App component, add the following to fetch the values we need from the global state.

export default function App() {
  ...
  const bcGraphqlToken = useAppSelector(...);
  const { quotesCreateActionsPermission, shoppingListCreateActionsPermission } =
    useAppSelector(...);
  const b2bToken = useAppSelector(({ company }) => company.tokens.B2BToken);
  const companyId = useAppSelector(({ company }) => company.companyInfo.id);
  const crmToken = useAppSelector(selectCrmToken);
  ...
}

4. Update the existing React side effect that sets the CRM token in the global state.

export default function App() {
  ...
  useEffect(() => {
    if (b2bToken && companyId && !crmToken) {
      initCrm({
        b2bToken,
        companyId,
      }).then((token) => {
        if (token) {
          storeDispatch(setCrmToken(token));
        }
      });
    }
  }, [storeDispatch, b2bToken, companyId, crmToken]);
  return (
    ...
  );
}

You should now be able to observe the effects of the token exchange in your browser developer tools, when reloading the Overview page:

• The console log will show request and response details for the mock client request.
• As before, you’ll see a console log of the value retrieved from global state and the fresh persist:crm value in session storage.

Observe that the mock client request will occur on any Buyer Portal page, and also that this request won’t be repeated once the value is stored in session storage.

Step 2: Fetch Support Case Data

In this step, we’ll use the mock client and the user’s CRM token to fetch support case data for the recent orders.

1. Open pages/Overview/components/RecentOrders.tsx and add a React state value to track the “B2B orders” separately from the main orders array.

export default function RecentOrders({
  ...
}: OrdersProps) {
  ...
  const [b2bOrders, setB2bOrders] = useState<OverviewOrder[]>([]);
  const [orders, setOrders] = useState<OverviewOrder[]>([]);
  ...
  useEffect(() => {
    if (!startLoad || !loading) return;
    getRecentOrders().then((b2bOrders) => {
      setB2bOrders(b2bOrders);
      setOrders(b2bOrders);
      setLoading(false);
    });
  }, [startLoad, loading]);
  useEffect(() => {
    if (!crmToken) return;
    ...
  }, [crmToken]);
  ...
}

Note we’re now setting the identical array of B2B orders in both the orders and b2bOrders state values. The former populates the rendered table and allows this rendering to proceed without being blocked by the CRM fetch. The latter allows us to construct a side effect to load the CRM case data.

2. Update the side effect that currently simply logs the CRM token.

export default function RecentOrders({
  ...
}: OrdersProps) {
  ...
  useEffect(() => {
    if (!startLoad || !loading) return;
    ...
  }, [startLoad, loading]);
  useEffect(() => {
    if (!crmToken || (b2bOrders.length <= 0)) return;
    crmFetchSupportCases({
      token: crmToken,
      filters: {
        b2bOrderIds: b2bOrders.map((order) => order.orderId),
      },
    }).then((crmCases) => {
      // TODO: Remove this console.log after implementing the main logic
      console.log(crmCases);
    });
  }, [crmToken, b2bOrders]);
  const orderColumns = [
    ...
  ];
  ...
}

As soon as the main B2B order records have been loaded, crmFetchSupportCases will now be called to fetch the support case data (including a status). The fetched data is simply being logged for now.

Note that the side effect now depends on b2bOrders being non-empty.

By reloading the Overview page and expanding the “Recent Orders” accordion, you should now be able to observe the fetch. Watch the console in your browser developer tools to see both the mock client request/response and the array logged by RecentOrders.

Step 3: Display the Support Case Status

In the process of adding the CRM-fetched support case status to the orders rendered on the page, we’ll have to expand the interfaces that define an order’s fields.

1. Open pages/Overview/components/RecentOrders.tsx, add a new interface that extends OverviewOrder, and update the orders state accordingly.

interface OrdersProps {
  ...
}
interface OverviewOrderWithSupportCaseStatus extends OverviewOrder {
  supportCaseStatus?: string;
}
export default function RecentOrders({
  ...
}: OrdersProps) {
  ...
  const [orders, setOrders] = useState<OverviewOrderWithSupportCaseStatus[]>([]);
  ...
}

Note that the b2bOrders state is still an array of OverviewOrder, since it only ever contains the un-enhanced B2B orders.

2. Update the type information for column definitions with render callbacks.

export default function RecentOrders({
  ...
}: OrdersProps) {
  ...
  const orderColumns = [
    ...
    {
      key: 'totalIncTax',
      title: b3Lang('orders.grandTotal'),
      render: (item: OverviewOrderWithSupportCaseStatus) => {
        return currencyFormat(item.totalIncTax);
      },
    },
    {
      key: 'createdAt',
      title: b3Lang('orders.createdOn'),
      render: (item: OverviewOrderWithSupportCaseStatus) => {
        return `${displayFormat(Number(item.createdAt))}`;
      },
    },
  ];
  return (
    ...
  );
}

3. Update the side effect that makes the CRM fetch.

export default function RecentOrders({
  ...
}: OrdersProps) {
  ...
  useEffect(() => {
    if (!crmToken || (b2bOrders.length <= 0)) return;
    crmFetchSupportCases({
      ...
    }).then((crmCases) => {
      const updatedOrders = b2bOrders.map((order) => {
        const crmCase = crmCases.find((crmCase) => crmCase.b2bOrderId === order.orderId);
        return {
          ...order,
          supportCaseStatus: crmCase?.status,
        };
      });
      setOrders(updatedOrders);
    });
  }, [crmToken, b2bOrders]);
  ...
}

updatedOrders is set by looping over b2bOrders, finding the matching CRM case, and adding the supportCaseStatus to the final object. This is then set on the orders state value that populates the rendered table.

4. Add a column value to render the support case status.

export default function RecentOrders({
  ...
}: OrdersProps) {
  ...
  const orderColumns = [
    ...
    {
      key: 'supportCaseStatus',
      title: b3Lang('overview.orders.supportCaseStatus'),
      render: (item: OverviewOrderWithSupportCaseStatus) => {
        if (!item.supportCaseStatus) {
          return <CircularProgress size={16} />;
        }
        return item.supportCaseStatus;
      },
    },
  ];
  ...
}

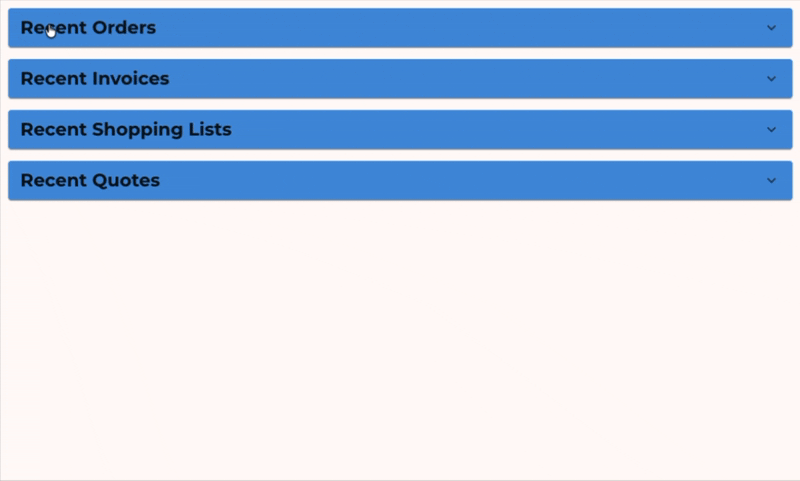

The “Recent Orders” table should now operate as follows:

• The initial fetch with the B2B GraphQL API will occur when the accordion is expanded.
• The table will be rendered immediately when the B2B orders are available, with a loading spinner in the Support case status column.
• The CRM fetch will be triggered as soon as B2B orders are available, and the Support case status column will be populated with the CRM case status as soon as the response is received.

Full Exercise Code
