Shipping Providers

Shipping service providers wishing to offer shipping services and rates to BigCommerce merchants and shoppers can implement BigCommerce Shipping Provider endpoints. Once they implement and accept their service into BigCommerce’s shipping carrier registry, merchants will have access to enable and configure the service through their BigCommerce control panel. Once enabled on a store, BigCommerce will automatically retrieve the service options and rates using the provider’s endpoints and display them to merchants in the store’s control panel and to shoppers on the storefront.

Merchants can also use shipping provider endpoints to retrieve rates from custom shipping tables or an in-house shipping rate calculation service.

Some use cases for the Shipping Provider API are:

  • A drop-shipper that requires their own rates
  • A merchant that already has a shipping table
  • Third-party logistics
  • Create a combination of in-store pickup and shipping options for shoppers

This article is a guide to developing an app that will make your shipping rates available to merchants and shoppers on demand.

Prerequisites

Shipping app overview

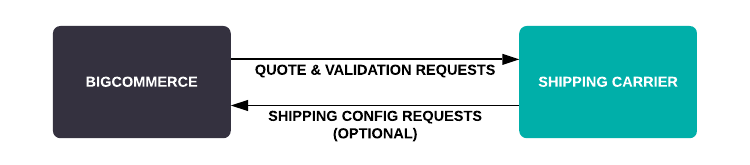

Carrier Service API

Single-carrier versus multi-carrier apps

You can only associate one registered shipping carrier with an app. This registered carrier can provide quotes from multiple downstream carriers.

BigCommerce makes a distinction between single-carrier and multi-carrier shipping providers. The primary difference is how the quote displays in the customer’s cart at checkout. If your app is registered as a single carrier, the name of the carrier providing the quote will appear beside the name of the shipping quote in the customer’s list of shipping rate options. The carrier name will not appear in quotes from multi-carrier apps. The following images illustrate the difference:

Single-carrier quote example

Single-carrier quote example

Multi-carrier quote example

Multi-carrier quote example

Carrier configurations

The configurations schema is optional and defines the settings you should provide when setting up a shipping method or carrier connection in a store. BigCommerce then includes these settings in requests it makes to your service.

If you’re unsure about the configurations you may need, leave them unspecified for now and request to add them later.

There are two types of configuration options: “connection” and “settings”. For each configuration option, please provide the following details:

  • Code: An identifier for this option. This identifier and the merchant’s input value for this configuration will be provided on the rate or check and validate connection endpoints.

  • Type: The display element for this option. Valid types include: text, checkbox, select, multiselect, or password.

  • Label: Text displayed on the BigCommerce control panel for this option.

  • Description: A concise and clear description explaining the purpose of this option.

  • Required: Indicate whether this option is mandatory or optional.

  • Map[only required if the type is select or multiselect]: If the option type is select or multiselect, provide a key-value pair to send.

Here are examples:

Connection Configurations
[
    {
        "code": "api_token",
        "type": "password",
        "label": "API Token",
        "description": "API token to access the carrier.",
        "required": true
    },
    {
        "code": "account_key",
        "type": "text",
        "label": "Account Key",
        "description": "Client ID for your carrier.",
        "required": true
    },
    {
        "code": "use_sandbox",
        "type": "checkbox",
        "label": "Sandbox",
        "description": "When enabled sandbox mode is used",
        "required": false
    }
]
Settings Configurations
[
    {
        "code": "destination_type",
        "type": "select",
        "label": "Destination Type",
        "description": "Selection of either residential or commercial destination type.",
        "required": false,
        "map": {
            "residential": "Residential",
            "commercial": "Commercial"
        }
    },
    {
        "code": "delivery_services",
        "type": "multiselect",
        "label": "Delivery Services",
        "description": "Checklist of delivery services to support",
        "required": true,
        "map": {
            "1_day_air": "1 Day Air",
            "2_day_air": "2 Day Air",
            "1 day ground": "1 Day Ground Delivery",
            "2 day ground": "2 Day Ground Delivery"
        }
    }
]

Sign up

When your app is complete, it will be listed in our carrier registry, so that your shipping rates are available for merchants and shoppers to use. Register your app and get a carrier ID to get started.

Register your app

We need your app ID to generate a carrier ID for your shipping service. To get your app ID, create a draft app in Developer Tools, and fill in the information requested on the Step 3: Technical tab. After you save the app, the developer tools control panel will navigate to a URL that includes your app’s unique ID.

App ID

Request a carrier ID

To get your app set up and request a carrier ID, send an email to shippingproviderapi@bigcommerce.com.

Please include the following information:

Before development

BigCommerce sends requests to your server to get information back about shipping quotes, credential validation, and configuration. To handle these requests smoothly, consider the following:

Your service URLs

Because BigCommerce sends your app requests, you need to provide BigCommerce with a URL that accepts quote requests and, optionally, a URL to check and validate connection options during app registration. These can be any valid HTTPS URLs that use port 443, for example:

https://example.com/rate

Replace example.com and rate with your own host and path.

Routes

You should create a URL to provide shipping quotes on your API and check the available shipping rates. The second URL (optional) checks to ensure the merchant’s connection settings are valid. It can perform any checks necessary to do so, such as looking up credentials in your database or calling a downstream service to verify them.

Request and response bodies

BigCommerce will send and receive data using JSON. The request for rates will always be formatted using the Base Rate Request Model. The response for rates should be formatted using the Carrier Quote Object. Format the request to check for merchant app credentials as Check Connection Options request payload, and the response should be formatted using the Check Connection Options response payload.

Error handling

In the case of errors, include human-readable error messages in the response payload under the messages key.

Example error response

{
  "valid": false,
  "messages": [
    {
      "text": "Your account ID is invalid",
      "type": "ERROR"
    }
  ]
}

Developing the app

To use the Shipping Provider API to provide shipping quotes, shipping providers must build a BigCommerce single-click app.

Using a BigCommerce app enables shipping providers to promote their solution in the BigCommerce App Marketplace, request merchant authorization of API scopes during app install, and enable configuration of shipping provider settings and/or order fulfillment via an iFrame in the BigCommerce control panel.

For more information, see our Introduction to Building Apps.

Control Panel installation workflow

During the app setup, if you configure the Check Connection Options URL for the carrier, an attempt to connect the carrier via the Shipping Manager UI or the Connect Carrier API causes a request to be made to that URL with the provided options. The resource should respond by indicating if the credentials are valid and explain what is wrong. If you did not configure this URL, this check is not required and the credentials are assumed valid as long as they pass type checks.

Example request to validate connection options

https://example.com/check_connection_options

X-Auth-Token: {{ACCESS_TOKEN}}
Content-Type: application/json
Accept: application/json
{
  "connection_options": {
    "account_id": "a1ty"
  }
}

Example response

{
  "valid": false,
  "messages": [
    {
      "text": "Your account ID is invalid",
      "type": "ERROR"
    }
  ]
}

Credential validation

It is best practice to authenticate the user and store against your database or the downstream provider service.

Once you install the app, it will be made available for configuration by merchants and API users. A merchant can navigate to the Shipping Manager and enable, configure, and disable the carrier for any defined zone.

API installation workflow

To set up a carrier using the API, first, connect it using the Connect Carrier API. Make a request containing the connection settings required by your carrier. The ID of the carrier is required. The carrier ID will be issued by BigCommerce when your carrier is registered. All connection fields are unique to each carrier. If your carrier doesn’t require any connection settings, send an empty object for the connection settings property.

Example carrier connection request with connection settings
POST https://example.com/shipping/carrier/connection
X-Auth-Token: {{ACCESS_TOKEN}}
Content-Type: application/json
Accept: application/json
{
  "carrier_id": "carrier_33",
  "connection": {
    "key": "userKey",
    "account_number": "userAccountNumber"
  }
}
Example carrier connection request without connection settings
POST https://example.com/shipping/carrier/connection
X-Auth-Token: {{ACCESS_TOKEN}}
Content-Type: application/json
Accept: application/json
{
  "carrier_id": "carrier_33",
  "connection": {}
}

Once connected, it’s possible to create shipping methods for a connected carrier in any shipping zone. You can query shipping zones using the Shipping Zones resource. For any zone, a request can be made to the Shipping Methods resource using the zone ID from the Shipping Zones resource to create a new method for the connected carrier. You are required to enter the shipping carrier’s ID in the type field.

Example request: Create a shipping method in a specified zone
POST https://api.bigcommerce.com/stores/{{store_hash}}/v2/shipping/zones/{{zone_id}}/methods
X-Auth-Token: {{ACCESS_TOKEN}}
Content-Type: application/json
Accept: application/json
{
  "name": "Example Shipping Carrier",
  "type": "carrier_33",
  "settings": {
    "carrier_options": {
      "account_id": "a1ty"
    }
  },
  "enabled": true
}
Example response: Create a shipping method in a specified zone
{
  "id": 24,
  "name": "Per Order Test",
  "type": "perorder",
  "settings": {
    "rate": 8.3
  },
  "enabled": true,
  "handling_fees": {
    "fixed_surcharge": 3
  },
  "is_fallback": false
}

Returning shipping quotes

Whenever shipping rates are required, BigCommerce checks its internal cache for valid entries. BigCommerce uses valid entries and does not call the shipping carrier. If a valid cache entry does not exist, BigCommerce makes a request to the Quote URL with details of the items to be shipped, the shipping origin, and the shipping destination. If you configured any connection settings or zone settings, include these. The shipping carrier must then respond with zero or more shipping quotes.

Example request: Shipping rates
POST https://example.com/rate
Content-Type: application/json
Accept: application/json
{
  "base_options": {
    "origin": {
      "street_1": "685 MARKET ST",
      "street_2": "",
      "zip": "94105",
      "city": "SAN FRANCISCO",
      "state_iso2": "CA",
      "country_iso2": "US",
      "address_type": "commercial"
    },
    "destination": {
      "street_1": "",
      "street_2": "",
      "zip": "94103",
      "city": "",
      "state_iso2": "CA",
      "country_iso2": "US",
      "address_type": "residential",
      "form_fields": {
          "1234": "checkbox_selection_1"
      }
    },
    "items": [
      {
        "sku": "SKU-100",
        "variant_id": "1",
        "product_id": "1",
        "name": "Shirt",
        "length": {
          "units": "in",
          "value": 1
        },
        "width": {
          "units": "in",
          "value": 1
        },
        "height": {
          "units": "in",
          "value": 1
        },
        "weight": {
          "units": "oz",
          "value": 1
        },
        "discounted_price": {
          "currency": "USD",
          "amount": "10"
        },
        "declared_value": {
          "currency": "USD",
          "amount": "10"
        },
        "quantity": 1,
        "attributes": []
      }
    ],
    "customer": {
      "customer_groups": [
        {
          "customer_group_id": 5,
          "customer_group_name": "Retail"
        }
      ],
      "customer_id": 6
    },
    "store_id": "ru7t7fv9",
    "request_context": {
      "reference_values": [
        {
          "name": "cart_id",
          "value": "8"
        }
      ]
    }
  },
  "connection_options": {
    "key": "userKey",
    "account_number": "userAccountNumber"
  },
  "zone_options": {
    "show_transit_time": true
  },
  "rate_options": []
}
Example response: Shipping rates
{
  "quote_id": "example_quote",
  "messages": [],
  "carrier_quotes": [
    {
      "carrier_info": {
        "code": "usps_pitney_bowes",
        "display_name": "USPS"
      },
      "quotes": [
        {
          "code": "",
          "rate_id": "9vcV1JfckPJZW2pjeNXcKP5y",
          "display_name": "USPS Priority Mail",
          "cost": {
            "currency": "USD",
            "amount": 6.35
          },
          "transit_time": {
            "units": "BUSINESS_DAYS",
            "duration": 1
          },
          "dispatch_date": "2018-08-29T00:00:00-05:00"
        },
        {
          "code": "",
          "rate_id": "EakTRTvck2XYGVAQw9Mza8WW",
          "display_name": "USPS Priority Mail Express",
          "cost": {
            "currency": "USD",
            "amount": 22.98
          },
          "transit_time": {
            "units": "BUSINESS_DAYS",
            "duration": 1
          },
          "dispatch_date": "2018-08-29T00:00:00-05:00"
        }
      ]
    },
    {
      "carrier_info": {
        "code": "fedex",
        "display_name": "FedEx"
      },
      "quotes": [
        {
          "code": "GND",
          "rate_id": "JnQ2MPqkAMX9cBsw0jyt551R",
          "display_name": "FedEx Ground",
          "cost": {
            "currency": "USD",
            "amount": 8.53
          },
          "transit_time": {
            "units": "BUSINESS_DAYS",
            "duration": 1
          },
          "dispatch_date": "2018-09-05T11:00:00-05:00"
        },
        {
          "code": "2DA",
          "rate_id": "QwygEz9XjZx1bT9rfDZsVxSy",
          "display_name": "FedEx 2 Day",
          "cost": {
            "currency": "USD",
            "amount": 10.47
          },
          "transit_time": {
            "units": "BUSINESS_DAYS",
            "duration": 2
          },
          "dispatch_date": "2018-09-05T11:00:00-05:00"
        }
      ]
    }
  ]
}

If no shipping quotes are available, the shipping carrier will send a response with the following format for the shipping quote:

Example response: No shipping rates
{
  "quote_id": "example_quote",
  "messages": [],
  "carrier_quotes": []
}

When you uninstall an app with an associated shipping carrier, you also automatically remove all the shipping methods and connection info for that carrier from the store. You can no longer make quote requests, and users will no longer see shipping quotes for that carrier.

The response payload will display shipping quotes from lowest to highest price.

Incomplete postcodes

Shipping provider integrations should plan to handle incomplete postcodes when handling shipping quotes. Incomplete postcodes can occur when stores use digital wallets as a payment method. Digital wallets truncate postcodes for shipping addresses in the UK and Canada as they only provide the first three characters to shipping provider integrations.

Digital wallets truncate postcodes only when they generate shipping quotes. Complete postcodes are available once a shopper places the order. Shipping providers can read and fetch order data after order placement.

Including product metadata in rate requests

BigCommerce passes carrier-specific product metadata to a carrier service in a rate request via product and variant metafields. This product metadata can be useful if your service depends on specific fields that are not existent on BigCommerce products or variants by default.

To pass metadata in a rate request, the metafield must meet the following requirements:

  • it must be a product or variant metafield (you cannot pass category, brand, or other metafields in rate requests)
  • the metafield permission_set must be read or write
  • the metafield namespace must match this format: shipping_carrier_<carrier_id> (example: shipping_carrier_72)

The carrier registration process described in the Sign up section provides the carrier_id.

For more information on product and variant metafields, see:

Submitting the app

Before submitting your app, make sure you have the following information.

Single-carrier or multi-carrier

A single-carrier app will offer one service, such as USPS. A multi-carrier app will offer more than one carrier such as USPS, DHL, and Canada Post.

Name and description

Name and description of the shipping carrier or carriers.

Logo

A 70x70 pixel logo that represents the shipping carrier app.

Configuration fields

Any shipping zone-specific or connection-specific fields to be made available to merchants or APIs for configuration. Configuration fields can include which rates to offer, packaging type, or packing method.

To submit your app, send an email to shippingproviderapi@bigcommerce.com.

Definitions

NameDescription
Configuration FieldsThe fields the merchant will see in the control panel. Merchants can navigate to the Shipping Manager and enable, configure, and disable the carrier for any defined zone. They will also be able to activate the app using the Carrier Connection API. Then use the Shipping Zones API and Shipping Methods API to configure the app from there.
Quote URLA URL for a resource of the shipping carrier that accepts quote requests and responds with shipping quotes. For more on the Quote URL, see a typical app workflow below.
Single Carrier or Multi CarrierA single carrier app will offer only one shipping provider. A multi carrier app will aggregate multiple shipping carriers in one app.
Countries AvailableA list of countries where you can use the shipping carrier. The default behavior is that the carrier is available for every shipping origin. In most cases, this list should be as broad as possible. For example, if your carrier operates worldwide, make it available worldwide. You can limit the countries further than what the shipping carrier has provided. If the service is worldwide, then leave this field blank to specify that it is worldwide. Specifying the use of the shipping carrier is an optional step.
Shipping CarrierA shipping carrier provides quotes to BigCommerce. If a shipping carrier uses more than one shipping provider, then it becomes a multi carrier aggregator. A carrier includes a name, a description, and a logo.
Multi-Carrier AggregatorA shipping solution that provides shipping quotes for multiple carriers.
Check Connection Options URLA URL for a shipping carrier resource that accepts check requests containing the connection options provided by a user when enabling the carrier and indicates whether or not those settings are valid. This is an optional step.
Shipping QuoteAn estimation of the cost to ship a set of items from an origin to a destination.
Shipping ZoneDescribes a set of destination addresses and the applicable shipping settings, such as handling fees and available shipping methods.
Shipping OriginThe location from which goods are shipped. This origin determines which shipping carriers are available for the merchant to configure in the control panel.

FAQ

Can I publish more than one app at a time?

No, you can only publish one app at a time. The others can be for use as testing or as private apps.
